Bayan Signage designs, fabricates and hangs suspended light box signs for supermarkets, showrooms, mall atriums, clinics and forecourt canopies. We keep each box as light as the design allows, fix it to the slab or steel above rather than the ceiling grid, add an independent safety wire, and coordinate the position with sprinklers and detectors before anything is drilled.

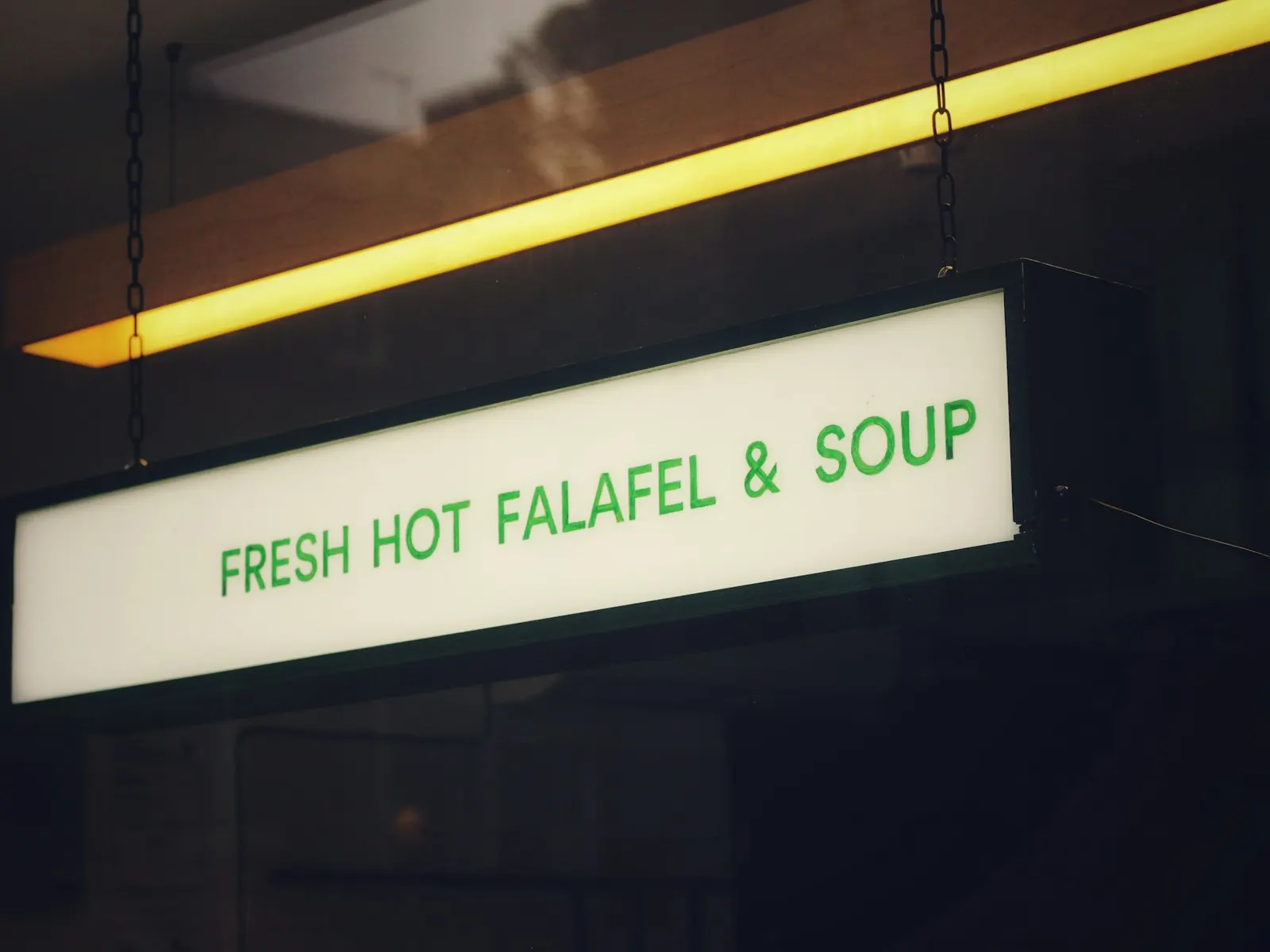

A hanging light box sign is an illuminated box, usually double-sided, suspended from the ceiling structure on wire ropes, rods or a bracket so it can be read across a busy floor. In a supermarket with 2 m shelving, a car showroom or a mall atrium full of people, the walls disappear; the zone above head height and below the ceiling services stays clear. Aisle and department signs, brand signs over counters, shop names under mall bulkheads and canopy signs at petrol stations all work there.
A hanging sign fails from the top down, so we design it in that order. The anchor has to go into concrete or steel, never a lay-in ceiling grid or gypsum board. Each wire is sized with a generous safety factor on the box weight, and an independent, slightly slack safety wire catches the box if a gripper slips. Then the box itself is kept light: an aluminium frame with edge-lit or slim LED panels instead of a heavy steel cabinet, which hangs straighter and needs smaller fixings.
Bayan Signage has fabricated illuminated signs in Ajman since 2016 as the production arm of Bayan Advertising, a UAE group with 15 years in the market. We build the boxes, cut the suspension hardware to length, assemble and test the LEDs, and our installation crews are trained for high access and site safety. Our draftsmen prepare the weight and fixing drawings that mall landlords and fire consultants ask to see before work starts.
Trusted by 500+ UAE businesses, including
The right suspension depends on ceiling height, air movement and whether the sign is indoors or under a canopy. These are the combinations we build most often.
A double-sided light guide panel only 40 to 60 mm thick. The lightest option, almost invisible edge-on, for aisles, clinics and corridors.
View details →A deeper box with LEDs on a central plane, brighter for atriums with lots of daylight or long viewing distances across a showroom.
View details →A light aluminium frame lit from inside, with a printed fabric graphic pressed into a silicone edge. Large double-sided faces stay light enough to hang, and graphics swap without taking the box down.
View details →Lit aisle and department signs hung parallel to the direction of travel, often on a track so they can move when the layout changes.
View details →Directional and department signs for hospitals, malls and offices, lit or unlit, matched to the building's wayfinding scheme.
View details →Large, light overhead signs for exhibition stands, rigged to the venue's points and designed to go up and come down quickly.
View details →We locate the slab or steel above, check what services run there, mark sprinklers, detectors and lights, and note diffusers that will blow on the sign. The survey is free in Dubai, Sharjah and Ajman.
Our draftsmen design the box to a target weight, choose anchors and suspension, and produce a drawing showing weight, fixings and position for the landlord and fire consultant.
Frames are cut from aluminium profile, faces CNC-cut on both sides, and edge-lit or slim LED panels fitted. Every box is weighed and run at full brightness before dispatch.
On site, anchors are drilled and proof-tested, wires or rods dropped to the set height, and the safety wire fitted first. Mall work is scheduled within the permitted hours, usually after the stores close.
The box is lifted from a platform, connected, levelled and turned to face the right way. Our electrician connects the power drop to a ceiling outlet or spur and checks both faces lit.
Our standard build for an indoor double-sided suspended box. Canopy and outdoor versions move to rigid fixings and outdoor-rated electrics, priced line by line.
| Component | Our standard | Upgrade options | Why it matters |
|---|---|---|---|
| Structural anchor | Drop-in or wedge anchors into slab, or beam clamps | Slotted channel grid for multiple signs | Ceiling grid and gypsum carry tiles, not signs; the load must reach structure. |
| Suspension | Two stainless wire ropes with self-locking grippers | Four wires in a V, threaded rods, track hanger | Two wires twist in strong air conditioning; four or rods hold the sign square. |
| Secondary safety | Independent slack safety wire to the frame | Second safety wire on large boxes | If a gripper or anchor fails, the box drops a few centimetres and stops. |
| Box | Aluminium frame, double-sided, 40 to 120 mm | Shaped box, coloured edges, fabric SEG faces | Every kilogram saved reduces anchor size and makes installation safer. |
| Light source | Edge-lit panels or slim LED trays | Brighter direct-lit for atriums | Edge-lit keeps the box thin and light; direct-lit wins against strong daylight. |
| Power drop | Flexible cable beside one wire to a ceiling outlet | Cable inside a rod, driver above ceiling | A tidy drop looks intentional; a driver above the ceiling stays cool and out of sight. |
Most of what decides a good overhead sign happens above the ceiling. These are the points we check before we agree a position.
The ideal position on a store plan often sits under a duct or a ceiling void with nothing solid within reach. We locate the slab or steel first, then move the sign to the nearest point that works, usually only a few hundred millimetres away. Trying it the other way round leads to long unsupported spans, extra steelwork or anchors in the wrong place.
Indoors, keep the underside at 2.4 to 3 m so it clears people, trolleys and displays. In a 6 m high hall, hang the box lower on longer wires rather than up near the roof, where legibility falls away fast. An aisle sign read from 15 to 25 m needs main text of about 80 to 120 mm, and it should hang parallel to the aisle so shoppers see a face, not an edge.
A sign that blocks a sprinkler head, smoke detector, exit sign or emergency light will fail the fire inspection and have to be moved. A common working figure is at least 450 mm clear below sprinkler heads, but the fire consultant's requirement governs. We work from the reflected ceiling plan and mark positions on site before drilling.
Strong air from ceiling diffusers can make a box on two wires turn slowly all day, so it faces the wall by the afternoon. Four-point suspension in a V, rigid rods, or simply moving the sign a metre away from the diffuser keeps it facing the right way. We check where the air blows during the survey, not after the sign is up.
Outdoors, gusts make wire-hung boxes swing and fatigue their fittings. Canopy and walkway signs go on rigid rods or brackets, with IP65 LEDs and the driver in the canopy void, and the canopy itself is checked for the extra load and wind uplift. These outdoor installations carry our 5-year warranty on LEDs, finish and structure.
Send us the sign size, quantity, ceiling height, the ceiling type and a photo of the space, and we will send an itemised quote, usually within 24 hours. Fabrication, installation and approvals are listed separately.
Edge-lit panels are lighter and thinner; direct-lit boxes are brighter for daylit atriums. Both faces lit costs more than a single face.
A full set of aisle or department signs is cut and assembled as one batch, which lowers the cost of each sign.
High ceilings need a scissor lift or boom; low ones can be done from a platform. Long drops also need longer suspension and more adjustment time.
Fixing to an exposed slab is simple. Steel beams need clamps, and deep voids or awkward services may need a small support frame.
A ceiling outlet nearby keeps costs down. New spurs or circuits switched with the store lighting are priced as electrical work.
Malls and operating stores often allow installation only after closing or outside trading hours, which affects the labour cost of the job.
Inside malls and large retail buildings, the landlord usually wants shop drawings showing the sign's size, weight, fixings and suspension before anything is hung from their structure, and may limit drilling to approved hours. We prepare these drawings as part of the job, respond to comments and schedule the installation to fit the building's rules.
Fire and life safety is the other approval. Dubai Civil Defence and the civil defence authorities in other emirates expect overhead signs not to obstruct sprinklers, detectors, exit signs or emergency lighting, and mall fire consultants often review sign positions. Requirements vary by building and change over time, so we confirm them for your site and coordinate with the ceiling services layout.
Aluminium frames and edge-lit or slim panels keep boxes light, so they hang straight and need smaller fixings. Every box is weighed before dispatch.
Each suspended box gets an independent secondary wire to the structure above, whatever its size, so a slipped gripper never means a falling sign.
Our crews fix to the slab or steel, never the ceiling grid, and proof-test anchors before the box goes up.
Weight, fixing and position drawings are prepared by our own draftsmen for mall approval and fire consultant review.
We work within mall and store access windows, including late shifts after closing, so your floor opens as normal the next morning.
The factory that builds your signs supplies the suspension and the installers, with one project manager from survey to handover.
They are fixed to the building structure above, usually a concrete slab or steel beam, with mechanical anchors or beam clamps. Wire ropes or rods drop from there to the box. In suspended ceilings the wires pass through small holes or a trim plate in the tile, which carries no load at all.
Most indoor suspended boxes weigh 5 to 25 kg. Heavier signs are possible, but they need larger anchors, more suspension points and the slab capacity confirmed with your project team or main contractor at survey. We design to keep weight down, and the weight appears on our shop drawing so the landlord's engineer can check it.
Yes, and most are, because people approach from both directions. Both faces carry graphics, lit from a shared source inside. Edge-lit double-sided boxes can be as thin as 40 to 60 mm while staying even on both faces, which keeps them light and discreet when seen edge-on.
A flexible cable runs down beside one suspension wire, or inside a rod, from an outlet or junction box in the ceiling, and the driver normally sits above the ceiling. If there is no power nearby, our electrician adds a spur, ideally switched with the store lighting so the signs go off at closing.
Yes, under canopies, covered walkways and petrol station roofs. Outdoors we use rigid rods or brackets instead of loose wires, because gusts make wire-hung boxes swing. The box, LEDs and driver are outdoor-rated, and the canopy is checked for wind uplift as well as the sign's weight.
Usually, yes. Malls typically ask for shop drawings showing size, weight, fixings and suspension, and their fire consultant may check the position against sprinklers and detectors. We prepare the submission, answer any comments and schedule the work within the mall's permitted hours, which usually means after trading ends.
Almost always it is air from a nearby diffuser pushing on a box hung from two wires. Converting to four-point suspension, fitting rigid rods or moving the sign away from the airflow solves it. It is a small job, and we can usually do it in one visit without removing the box.
Dust the top edges every couple of months, as they look grey from below. Once a year, check that grippers have not slipped, wires are not frayed and the safety wire is still attached. If a ladder or display ever hits the sign, have the fixings checked before switching it back on.
