Bayan Signage builds multi-tenant pylon signs for community centres, strip malls, business parks and medical buildings from its Ajman factory. We weld the galvanised steel structure, light the header and every tenant slot evenly, and fit a slide-in panel system so a tenant change takes minutes. The structure carries a 5-year outdoor warranty.

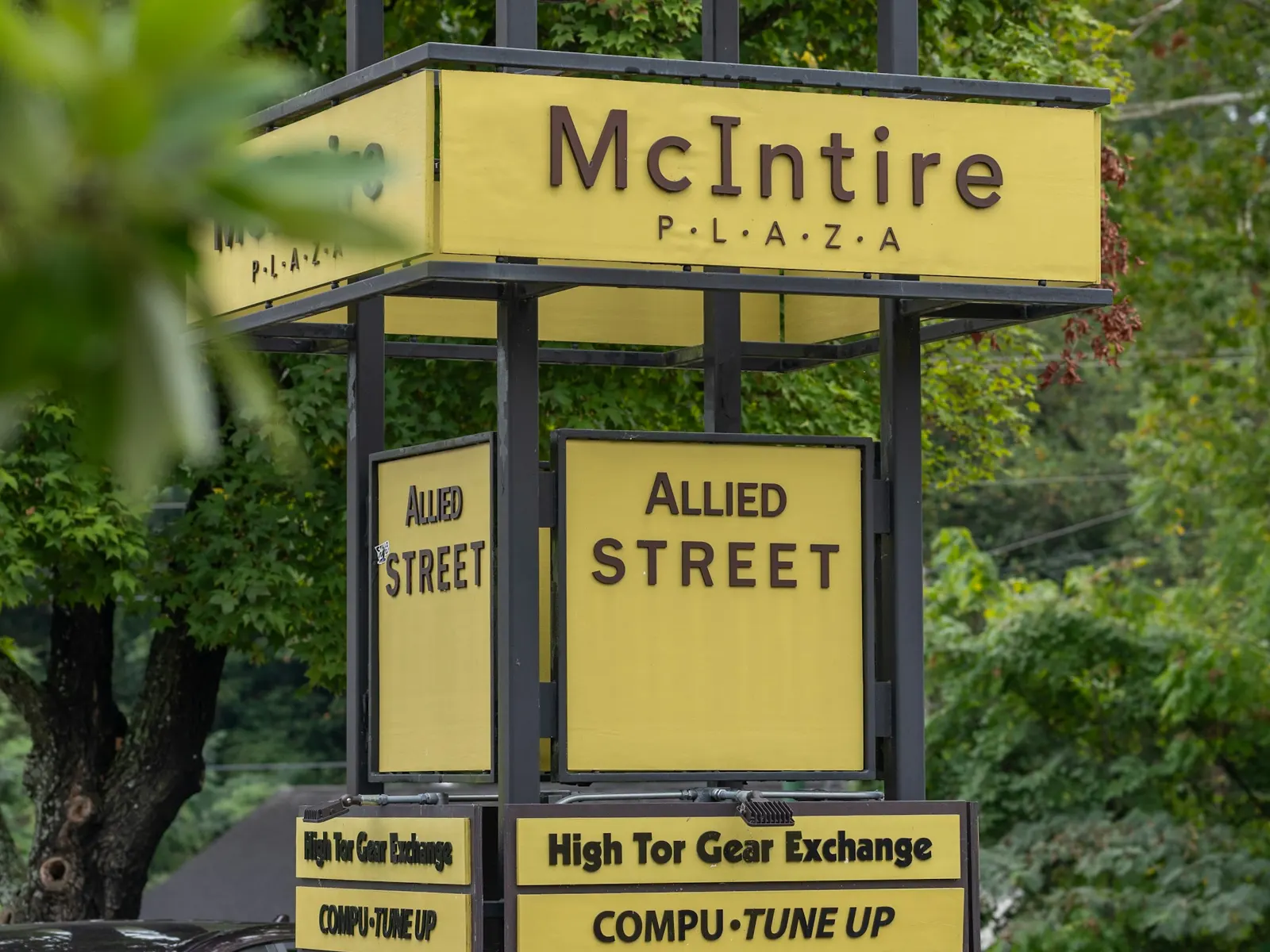

A multi-tenant pylon sign is a tall freestanding sign at the entrance of a community centre, strip mall, business park or medical building, showing the development name at the top and individual tenant panels below, with panels that can be replaced one at a time when tenants change. It is bought by landlords, developers and property managers, and it serves the supermarket, pharmacy, clinics and small shops that would otherwise be invisible behind the car park.
A multi-tenant pylon is a sign that changes hands every year. The landlord who plans for turnover on day one ends up with a tidy pylon; the one who does not ends up with a patchwork of mismatched panels, dark slots and an old tenant's name nobody removed. What decides it is mostly mechanical: identical panel sizes, rails and a lockable cap rather than screws, a light chamber that lights empty slots as evenly as full ones, and a template every tenant follows. We design all of that into the structure at our Ajman factory.
Bayan Signage is the production arm of Bayan Advertising, which has 15 years in the UAE, and our factory at Alam Square, Industrial Area 2, Ajman has welded pylon and totem structures since 2016. Our draftsmen produce the structural and permit drawings, our electricians wire and test the light cabinet, and we keep the panel drawings on file, so every new tenant face fits the slot first time.
Trusted by 500+ UAE businesses, including
The right build depends on how often tenants change and how premium the centre wants to look. These are the options we quote most often for landlords.
Routed aluminium tenant faces with acrylic letters, so only names and logos glow. The premium look for business parks and upmarket centres.
View details →Vinyl on polycarbonate inserts that light edge to edge. The cheapest faces to change, and the sensible choice for centres with frequent turnover.
View details →A lower freestanding sign for pedestrian entrances, villa-area centres and sites where a tall pylon is not allowed, carrying the full tenant list.
View details →Uniform white text on dark ACP panels for industrial parks and warehouse complexes, showing company names and unit numbers by day.
View details →A pedestrian-scale board inside the site with every tenant and a map, so the roadside pylon can stay short and readable.
View details →A new rail and panel system, LED relighting and fresh cladding on a sound existing structure, often far cheaper than a replacement.
View details →We check sightlines from both approaches, locate buried services and the power supply, and agree which tenants must appear on the pylon and which belong on an on-site directory.
Our designers set one standard panel size, the anchor panel and the header, then produce a one-page artwork template showing safe area, minimum text size and background colour for tenants.
Draftsmen prepare the elevation, structural plans and foundation details for wind load, plus the authority submission and any developer or free-zone package.
The galvanised frame is welded in our steel shop and clad in ACP. The double-sided light cabinet is fitted with modules spaced so every slot, including blanks, lights evenly at full brightness.
Aluminium rails and a lockable cap are fitted, and every slot is numbered inside the cabinet. The property manager gets a slot map so future panels can be ordered without a site visit.
The base is cast with anchor bolts to a template, the structure is crane-lifted, levelled and bolted down, panels slide in, and we test at night and show the manager how to change a panel.
This is the build we start from for a double-sided, illuminated centre pylon. We adjust it to the site, the developer's guidelines and how often you expect tenants to change.
| Component | Our standard | Upgrade options | Why it matters |
|---|---|---|---|
| Structure | Galvanised steel frame to structural design | Taller pylon, shaped head | Designed for the wind and soil on your plot, with calculations for the permit. |
| Header | Push-through acrylic letters in routed aluminium | 3D letters on a sculpted top | The centre name is the part most drivers remember. |
| Tenant panels | One standard size, 350 to 400 mm high | Double-height anchor panel | Identical panels let any tenant move to any slot without a new face. |
| Panel faces | Vinyl on polycarbonate inserts | Routed aluminium with push-through acrylic | Insert faces are cheap to change; routed faces look more premium. |
| Panel system | Slide-in rails, lockable top cap | Hinged service doors on each side | A tenant change takes minutes instead of a lift and a full day. |
| Light cabinet | 200 to 300 mm deep, double-sided, ventilated | Dimming after midnight | Even light on every slot; ventilation stops upper panels dimming first. |
A multi-tenant pylon is as much a leasing tool as a sign, and it is managed for ten years or more. These are the decisions that make it easy to run.
Drivers usually see a roadside sign for four to six seconds, which leaves room to read the centre name and roughly six to eight short tenant names. For a pylon read from 60 to 80 m, names need about 200 to 250 mm of cap height, so panels of at least 350 to 400 mm. If you have twelve tenants and room for eight readable panels, show the anchor and the tenants that depend on passing trade, and list the rest on an on-site directory.
Allowing one tenant a slightly bigger panel breaks the grid and makes every future change harder. Keep every standard panel identical and use position, not size, to reflect importance. The only exception should be an anchor panel agreed in the anchor's lease, usually twice the standard height, fixed at the design stage.
Without a template, every tenant sends artwork in different proportions and colours, and the pylon slowly turns into a patchwork. A one-page template with the safe area, minimum text size, background colour and an area for Arabic keeps it consistent. Some landlords allow logos on a common background, which is a sensible middle ground between brand recognition and a calm pylon.
A dark slot makes the centre look half empty, and an old tenant's name confuses customers and annoys the new tenant. Order two or three spare blank panels with the pylon in the background colour, keep them lit like the others, and replace a departing tenant's face promptly. A temporary leasing panel with a phone number can bring enquiries, but should come off as soon as the unit is let.
A place on the pylon is often a lease term, and prospective tenants ask about it. Decide early who pays for each tenant panel; many landlords pay for the pylon and require tenants to pay for their own face, made to the landlord's template. With a standard size and a slot map, that cost is known in advance and easy to pass on.
We price each pylon from its drawings and site plan. Send the site plan, the tenant list and any developer guidelines, and we usually send an itemised quote within 24 hours, separating structure, cabinet, panels, foundation, installation and permits.
Taller pylons with more tenant slots need more steel, foundation, cladding and lighting. Height also drives crane hire and the size of the concrete base.
Rails and a lockable cap cost more upfront than screw-fixed panels, but every tenant change after that becomes quicker, safer and cheaper.
Routed aluminium faces with push-through acrylic look premium but cost more per change. Vinyl on polycarbonate is cheaper to change.
Double-sided pylons need deeper cabinets, two sets of faces and more LEDs, but are essential when traffic approaches from both directions.
A sculpted header with 3D letters costs more than a flat cabinet, and anchor tenants sometimes bring their own brand specification.
Foundations, cabling from the main board, bollards and permit drawings add scope, especially on finished sites with paving to reinstate.
A multi-tenant pylon usually needs approval from the municipality for the site, such as Dubai Municipality, Sharjah Municipality or Ajman Municipality, and pylons near major roads may need RTA input on position and height. Submissions normally include the elevation, structural plans and foundation details, which our technical draftsmen prepare for each site.
Master developers and free zones such as JAFZA, DMCC and TECOM often have their own sign guidelines covering height, materials, lighting and the number of tenant names allowed. Changing a tenant panel on an approved pylon is usually simpler than a new application, but some authorities want to see the new face. Requirements vary, so we confirm the current rules for your exact site.
Slide-in rails, numbered slots, spare blanks and a tenant template are part of our standard design, so the pylon stays tidy for years.
Galvanised steel frames, cladding and light cabinets are made at our Ajman factory to our own structural drawings.
We keep every pylon's drawings on file, so a property manager can order a new tenant face by slot number without a site visit.
Structure, powder coat and LEDs are covered for 5 years, with a warranty document handed over on completion.
Our draftsmen prepare submissions for municipalities and free-zone authorities, and work to master developer sign guidelines.
A single project manager handles the build, and the same team makes every tenant panel that follows.
It depends on height, the number of tenant slots, the panel system and face type, whether it is double-sided and the site works. A 5 m pylon with polycarbonate inserts costs far less than a 9 m pylon with a sculpted header and push-through faces. Send the site plan and tenant list, and we will send an itemised quote, usually within 24 hours.
For readability from a passing car, most pylons work best with the centre name plus six to eight tenant panels. More panels can be fitted, but each name becomes smaller and harder to read. If you have many tenants, show the anchor and key tenants on the pylon and use an on-site directory for the rest.
On a well-designed pylon, panels slide into rails and are held by a lockable top cap. To change a tenant, the cap is opened, the old panel slid out and the new one slid in, often in under an hour per side. Screw-fixed panels take much longer and usually need a lift.
This is usually set out in the lease. Many landlords pay for the pylon and require each tenant to pay for their own panel, made to the landlord's template. A standard panel size and template keep the cost predictable for every new tenant and avoid arguments about appearance.
Both work. Tenant logos in brand colours help recognition but can look busy. Uniform white text on a dark background looks calm and premium and is common in business parks. Many landlords allow logos on a common background colour, which is a sensible middle ground for most centres.
Yes. Fitting both scripts into a standard panel at a readable size takes planning, so we design the template with a defined area for each script rather than squeezing Arabic in afterwards. We check each tenant's spelling against their trade licence before the panel is made.
Often yes. If the structure and cabinet are sound, we can retrofit a rail and panel system, relight the cabinet with LEDs and refresh the cladding and header. That can make an old, patchy pylon look new for much less than replacing it. We inspect the base, bolts and frame first.
Yes. We fabricate in Ajman and install across all seven emirates, including Sharjah, Abu Dhabi, Ras Al Khaimah, Umm Al Quwain and Fujairah. The site survey is free in Dubai, Sharjah and Ajman, and we can make replacement tenant panels for any pylon we have built.
Send your logo, the fascia size and a site photo. Our estimating team replies with options and an itemised price, usually within 24 hours.
