Bayan Signage designs and makes warehouse aisle signs, rack end panels and location labels as one address system for distribution centres, 3PL buildings, cold stores and spare parts stores. We print and CNC-cut every sign in our Ajman factory to your warehouse system's location format, then install aisle by aisle while your operation keeps running.

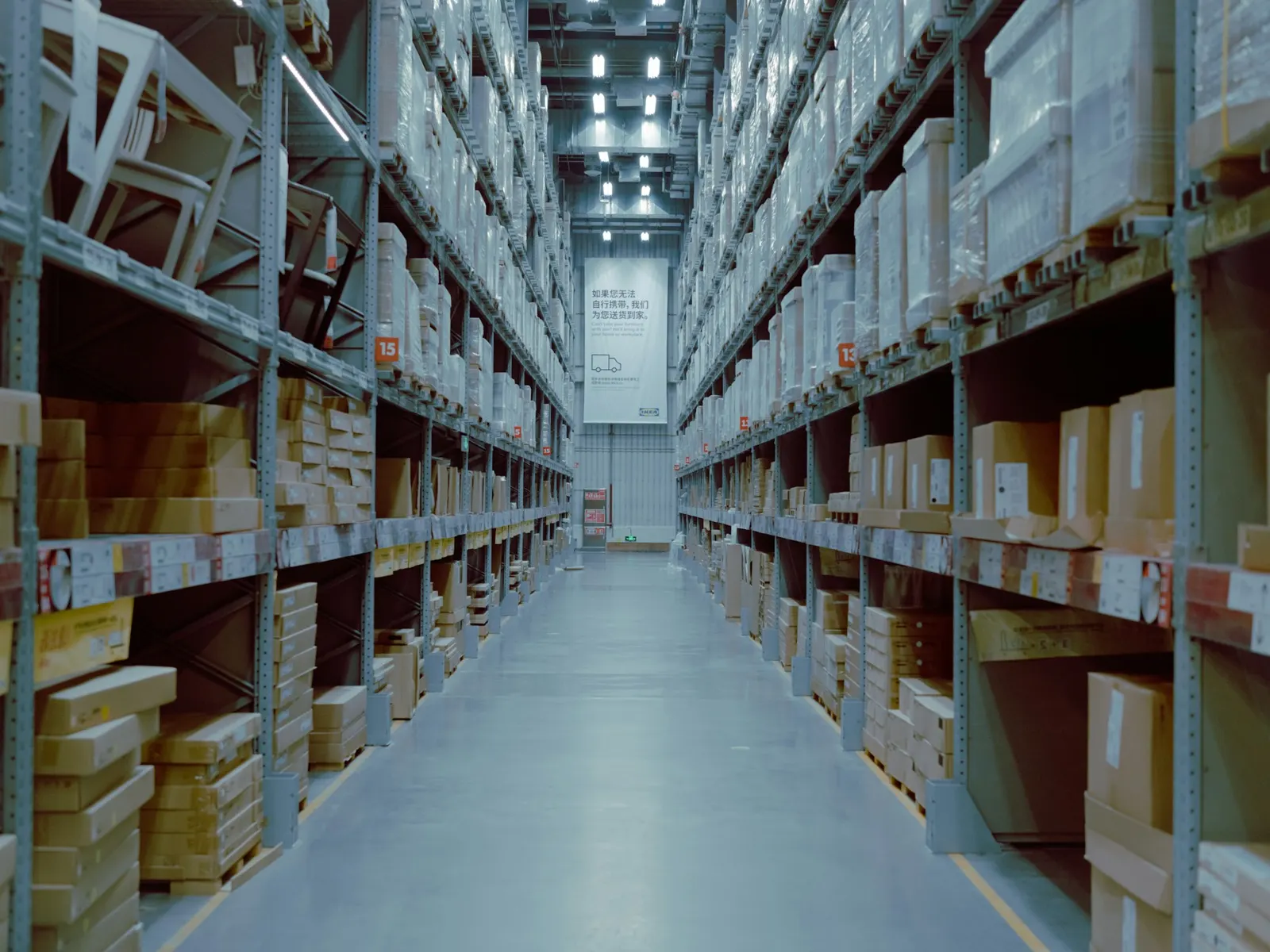

Warehouse aisle signs identify each aisle, rack run and bay so pickers, forklift drivers and visitors find a location without counting. At the top level, a double-sided hanging marker tells a driver on the main route which aisle to turn into; rack end panels repeat the aisle code and show the bay range; beam labels give every pallet position its own code and barcode. We supply all three levels for free-zone logistics buildings, e-commerce fulfilment centres, cold stores and industrial stores.
When the three levels agree, people stop asking where things are. When they disagree, even a disciplined warehouse picks from the wrong bay. The physical side is straightforward: flat ACP that stays straight under a hot roof, matt faces that do not flare under high-bay LED lighting, clamp brackets that fit the upright without drilling. The discipline is in the data, so our draftsmen build every sign and label from one export of your location list and check the codes before anything is printed.
Bayan Signage has produced signs in its own factory in Industrial Area 2, Ajman since 2016, as the production arm of Bayan Advertising, which has 15 years in the UAE. Printing, laminating and CNC cutting sit under one roof, and our installers are used to working from scissor lifts in live buildings around shift patterns.
Trusted by 500+ UAE businesses, including
Most schemes combine three or four of these. We design them together so the codes and colours agree at every level of the building.
Double-sided panels hung from the roof steel above each aisle mouth, with large codes readable from the main traffic route over parked trucks and stacked pallets.
View details →Panels clamped to the end frame of each rack run showing the aisle code and bay range, mounted above the impact zone of forks and pallets.
View details →Beam and bin labels with location codes and scannable barcodes, printed from your system export and checked against it before they are applied.
View details →Door numbers and yard signs that follow the same numbering logic as the aisles, so the dock and the racking speak one language.
View details →Speed, pedestrian and warning signs kept separate from location codes, so safety messages are not lost among aisle numbers at the rack ends.
View details →Wall and column signs at zone entrances and mezzanine stairs showing the protective equipment required, printed in the same colour scheme as the aisle codes so each zone reads as one.
View details →We take your racking layout and the location format from your warehouse system, then mark every sign position on the drawing. The site visit is free in Dubai, Sharjah and Ajman.
We check heights against sprinklers, lighting and mast heights, and hold a sample marker on a lift at the planned height to see it from a driver's seat under the real lighting.
Our draftsmen generate every aisle code, bay range and beam label from one export of your location list, and send a proof list for your operations team to check line by line.
Signs are printed on our large-format printers, matt laminated and CNC-cut from ACP or PVC foam. Barcode labels are printed in location order and test-scanned before packing.
Our crew fixes hanging markers to the roof steel and rack panels with profile clamps, closing one aisle at a time with the shift supervisor so picking continues elsewhere.
Beam labels go on last and are scanned against the system list. We hand over the artwork files and spare blanks, so future re-slotting keeps to the same scheme.
This is our standard for warehouse aisle signs in ambient and air-conditioned buildings. Cold stores and very hot sheds change the materials and adhesives, and we specify for the actual temperature range.
| Component | Our standard | Upgrade options | Why it matters |
|---|---|---|---|
| Hanging marker | 3 to 4 mm ACP, double-sided, matt laminate | Reflective vinyl for dim zones | ACP stays flat under a hot roof, and matt faces avoid glare under high-bay LEDs. |
| Hanging hardware | Stainless wire and clamps to roof steel | Anti-sway restraint near doors and fans | Clamps avoid drilling the roof structure, and restraint stops markers spinning in draughts. |
| Rack end panel | 3 mm ACP on profile clamp brackets | Steel guard for low-mounted panels | Clamps fit the upright without drilling, which protects the racking rating. |
| Beam labels | Polyester with permanent adhesive | Magnetic labels; cold-store adhesive | Magnetic labels make re-slotting easy, and cold-store adhesive keeps labels on below zero. |
| Characters | Bold condensed sans serif | Zone colour bands | Short bold codes are recognised rather than read, which is faster at distance. |
| Load notices | Printed ACP with the supplier's figures | Bilingual layout | Safe working loads must come from the racking supplier, and we print exactly what is supplied. |
Warehouse aisle signing pays back in picking accuracy and shorter training time. These are the points that decide whether it does.
If the sign says A-12 and the warehouse system says 01-12, every picker translates in their head, and translation is where errors creep in. Put the exact location format from your system on every sign and label, including separators and leading zeros. We build all levels from one export, so they cannot drift apart over time.
A short aisle code is recognised rather than read, so it works smaller than a sentence would. We start at roughly 10 mm of character height per metre of viewing distance: about 300 mm for 30 m along a main route, and 450 to 600 mm for 50 m sightlines in large distribution centres. Two or three characters read much faster than five.
Rack end panels at 1.5 m are hit by pallets and forks within weeks. Mount them above about 2.5 m, or protect lower signs with a guard. Never drill uprights to fix a sign, because drilling can affect the racking's rated capacity and the supplier's warranty. Clamp brackets made for the upright profile do the job without that risk.
Under high-bay LED lighting, a glossy white face can flare from some angles and become unreadable from a forklift seat. Hold a sample at the planned height from a lift before ordering the full run. A matt laminate usually solves the problem, and choosing it now is far cheaper than relaminating fifty markers later.
Colour-coding zones helps temporary staff find their way before they can read a code. Keep to a few clearly different colours, repeat each one on the hanging marker, the rack ends and the column signs, and avoid relying on red against green alone, since a noticeable share of people find those two hard to tell apart.
We quote from the layout drawing and the number of locations. Send us the racking layout, the location code format, the clear height and your operating hours, and we will return an itemised quotation, usually within 24 hours, separating signs, labels, hardware and installation.
Cost scales with aisles, rack ends and beam positions. Large schemes cost less per sign because artwork and setup are shared across the set.
Hanging markers in a high-bay building need scissor or boom lifts, sometimes out of hours. Access can cost more than the signs themselves.
Rack clamps, stainless wire, chain kits and anti-sway fixings vary in cost, and markers near dock doors or fans need firmer restraint.
PVC foam is economical indoors, while ACP is flatter and longer lasting. Reflective vinyl, cold-store adhesives and magnetic backings add cost.
Barcoded labels with sequential codes need data preparation, proof lists and checking against your system before printing.
Installing aisle by aisle around live operations takes longer than fitting an empty building before go-live, when lifts can work anywhere.
Warehouse aisle signs rarely need an authority permit, but they must respect fire safety. Hanging markers must not obstruct sprinkler heads, smoke detectors or emergency lighting, and those clearances follow Dubai Civil Defence requirements and the building's fire consultant. We confirm every hanging position against the sprinkler and lighting layout with your facility team before fixing.
Warehouses in free zones such as JAFZA and in leased logistics parks often need landlord or authority consent before anything is fixed to the roof structure, and racking suppliers usually need to approve any fixing to their uprights. We check what consent your building needs before clamping or drilling anything overhead, because the requirements vary from site to site.
Hanging markers, rack ends and beam labels are all generated from one export of your location list, so the codes match from roof to beam.
Printing, laminating and CNC cutting happen at our Ajman factory, which keeps large schemes consistent and quick to extend. Visits during production are welcome.
We fix with clamps sized to the upright profile, protecting your racking rating and the supplier's warranty.
Our crews work aisle by aisle with your shift supervisor, at night or weekends where needed, so picking does not stop.
Signs, labels, hardware, access equipment and installation are listed separately, usually within 24 hours, so you can see where the cost sits.
More than 500 clients across the UAE, including national retail groups and international brands, with most of our work from repeat clients and referrals.
It depends on the number of aisles, rack ends and beam locations, the materials, the mounting hardware and how much of the work is at height. A small store with ten aisles and shelf-end signs costs a fraction of a high-bay distribution centre with hanging markers and barcoded beam labels. Send us the layout and code format, and we will send an itemised quote, usually within 24 hours.
Usually above the tallest load, mast or racking in that zone, and clear of sprinklers and lighting. In high-bay warehouses that often means 6 to 10 m. The aim is a clear line of sight from the main route over parked equipment. We check heights on site from both standing and forklift-seat positions.
Yes, and that is our default. We use clamp brackets or magnetic fixings designed for the upright or beam profile. Drilling uprights can affect the racking's rating and the supplier's warranty, so any drilled fixing should be approved by the racking supplier first and recorded in the inspection file.
ACP of 3 to 4 mm is our usual choice for hanging and rack end signs, because it stays flat in heat and lasts. PVC foam works in air-conditioned buildings on a tighter budget. Cold stores need matt finishes and low-temperature adhesives or mechanical fixings chosen for the temperature range.
Colour-coding helps in large or busy buildings, especially with temporary staff at peak season. Each zone gets a colour repeated on hanging markers, rack ends and sometimes wall or column signs at the zone entrance. Keep to a few clearly different colours, and do not rely on red against green alone.
Yes, as rigid printed panels for the end of each rack run. The safe working load figures must come from the racking supplier or a qualified inspector, not from us. We print exactly what is supplied and lay it out so beam levels and loads are easy to read.
Yes. We usually work aisle by aisle, coordinate with the shift supervisor and close one aisle at a time while lifts are in use. Night or weekend work is possible where daytime traffic is too heavy. Installing before go-live is faster and cheaper if you have that option.
They are two levels of the same address system. Aisle and rack end signs help people navigate, while beam labels identify each location for scanning. The codes on both must match your warehouse system exactly, which is why we produce both from the same data.
