Bayan Signage designs and fabricates mall shop signage to each landlord's tenant design criteria in its own Ajman factory: bulkhead letters, blade signs, glazing graphics and back-wall logos. Our draftsmen prepare the submission package, and our crews install at night under the mall's work permit, so the sign is lit and checked before doors open.
Mall shop signage is the set of signs that identifies a tenant unit inside a shopping centre: usually 3D letters or a logo on the bulkhead above the entrance, a projecting blade sign seen down the corridor, graphics on the glazing and often a logo on the back wall. Unlike a street fascia, almost every detail is set by the landlord's fit-out manual: the sign zone, the maximum depth, the lighting type, the colour temperature and even when it switches on.
The mall is kind to signs and hard on suppliers. There is no sun, rain or sand, so fine trimless letters, mirror acrylic and painted finishes last very well, and shoppers see them from three to fifteen metres, so detail shows. What goes wrong is process: drawings that ignore the depth limit, materials without fire data, a supplier who fabricates before approval, or a night crew without the right documents. Our draftsmen read the criteria before our designers draw anything, and nothing is cut in our factory until the mall has approved.
Bayan Signage is the production arm of Bayan Advertising, which has worked in the UAE for 15 years, and our Ajman factory has made shopfront signs since 2016 for national retail groups and international brands. Letters, LEDs, finishing and packing for night delivery are all done in-house, and one project manager deals with the mall's tenant coordination team from first submission to final inspection.
Trusted by 500+ UAE businesses, including
Most tenants need more than one sign. These are the elements we design together so the unit reads as one brand from the corridor to the counter.
Metal-faced letters on short stand-offs within the sign zone. The look many premium malls ask for, and slim enough to suit tight projection limits.
View details →Lit acrylic faces bonded without a trim cap, for a clean edge that holds up to close inspection by shoppers and tenant coordinators.
View details →Double-sided projecting signs hung at right angles to the shopfront, so the unit is visible down long corridors. Often required at a fixed size.

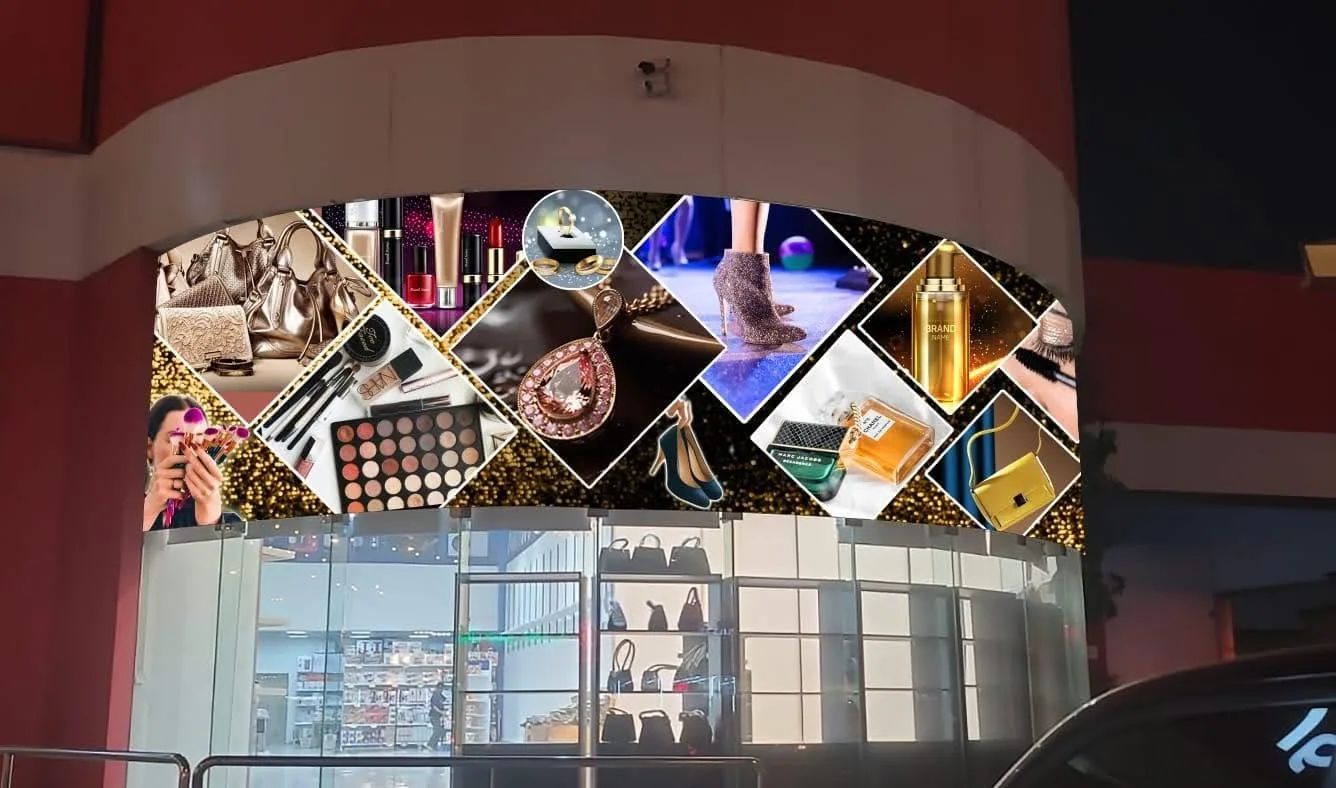

View details →Cut or printed vinyl for safety manifestation, opening hours and brand graphics, kept within the share of glass the mall allows.
View details →Halo letters, acrylic or LED neon on the wall behind the counter. Inside the lease line, so the brand has more freedom here.
View details →Printed panels that hide the fit-out and announce the opening. Many malls require them, and our printers turn them around quickly.
View details →We read the tenant design criteria and the shopfront drawings, then list every limit that affects the sign: zone, depth, letter height, lighting, colour temperature, materials and fire ratings.
Our draftsmen prepare shop drawings with the neighbouring units shown, material samples, LED and driver data sheets and fixing details, in the format the mall's tenant coordination team expects.
Once drawings are approved, letters are CNC-cut, assembled and lit at full brightness in our test area, then mounted on a removable rail so they can come off cleanly at lease end.
We submit method statements, risk assessments, insurance details and crew lists for the work permit, and book the night slot with the mall's operations team.
Usually between midnight and 6 am, floor protection goes down, the rail is fixed to the bulkhead from a template, letters clip on and our electrician connects drivers in the ceiling void.
The sign is tested, the area cleaned before opening, and we attend the tenant coordination inspection, closing out any comments the same week.
Each mall sets its own limits, so this is a typical starting point rather than a fixed product. We adjust every line to the criteria in your fit-out manual.
| Component | Our standard | Upgrade options | Why it matters |
|---|---|---|---|
| Letters | Front-lit or halo-lit, 50 to 100 mm deep | Trimless faces, stainless or PVD returns | Depth has to fit the mall's projection limit, often 100 to 150 mm from the bulkhead. |
| Faces | UV-stabilised cast acrylic | Mirror or metallic acrylic indoors | Indoors, finishes that would fade outside last for the whole lease. |
| LEDs | Samsung or Epistar at the specified colour temperature | Dimmable drivers | A cool white sign in a 3,000 K corridor stands out for the wrong reason. |
| Mounting | Removable aluminium rail | Concealed hanging system | Faster night installation and cleaner removal when the lease ends. |
| Drivers | In the ceiling void with an access panel | Remote driver enclosure | Many malls fine tenants for dark signs, so drivers must be reachable fast. |
| Documentation | Shop drawings, samples, data sheets | Structural notes for large or suspended signs | Complete packages get approved in fewer rounds. |
Mall signs are rarely late because of fabrication. They are late because of approvals and night slots. These are the habits that keep openings on schedule.
If the mall caps projection at 100 mm, a halo letter with a 50 mm return on 30 mm stand-offs fits; a 100 mm deep front-lit letter on studs does not. Read the depth, the sign zone and the allowed lighting types before choosing a style, not after the brand team has fallen in love with a render. The sign zone is often a set height on the bulkhead and roughly 60 to 80% of the frontage width.
A sign built before the mall approves the drawings may need rebuilding to suit comments on depth, size or lighting, and the cost of that falls on the tenant. We hold fabrication until we have approved drawings in hand, and we prepare the submission thoroughly enough that most packages need only one round of comments.
In a long corridor the bulkhead sign is invisible until shoppers are almost in front of the unit; the blade sign is what they see first. Malls usually fix its size, bracket detail and clearance, often 2.4 to 2.7 m under the sign. Include it in the first submission so it is not a separate approval later.
Many malls restrict fit-out and installation work around Ramadan, Eid, the Dubai Shopping Festival and other peak periods, or shorten night working hours. If your opening date falls near one, submit early and book the night slot as soon as approval arrives, because slots fill up quickly across every mall.
Most leases require the sign to be removed and the bulkhead made good when the tenancy ends. Letters glued straight to a painted bulkhead are slow and messy to remove. A removable rail costs little at the start, makes the night install quicker to inspect and turns reinstatement into a short job.
We quote from the mall's criteria and your brand drawings. Send the fit-out manual, the shopfront elevation and your logo, and we usually send an itemised quote within 24 hours, separating design and submission, fabrication, night installation and removal provisions.
Some malls require specific materials, fire-rated components, LED brands or trimless construction, and premium malls usually ask for more detailed documentation.
Shop drawings, samples and lighting data are prepared and revised until approved. A complete first submission keeps this cost down.
Installation after closing under a work permit, with supervision and safety requirements, costs more than daytime street work.
Bulkhead letters, blade sign, glazing and a back-wall logo together cost more than the main sign alone, but share design and installation visits.
Halo and trimless letters take more fabrication and finishing time than standard front-lit letters with trim caps.
Planning removable fixings now keeps the future cost of removal and making good the bulkhead lower.
Inside a mall, the approval that matters is the landlord's. Every major mall in Dubai, Sharjah, Ajman and Abu Dhabi has a tenant coordination team that reviews sign drawings against its fit-out manual, and work cannot start without approval and a work permit. Most also ask for material and electrical data so they can check fire performance in line with Civil Defence requirements for the building.
Signs facing a road or the outside of the mall are different: they are usually treated as outdoor signs and need municipality approval as well as the landlord's. Community malls with both corridor and street frontages often need two separate designs. Requirements vary from mall to mall, so we confirm the current rules for each sign location.
Our draftsmen prepare drawings, samples and data sheets in the format each mall expects, so approvals take fewer rounds.
Letters, LEDs and finishing are all done at our Ajman factory, so fabrication starts the day approval arrives.
Method statements, risk assessments and crew lists are prepared in advance, and our installers are used to working inside mall rules.
A single contact deals with your fit-out contractor and the mall's tenant coordination team from submission to inspection.
We reconcile international brand manuals with each mall's criteria and flag conflicts before fabrication, not after.
More than 500 clients across the UAE, including national retail groups and international brands opening units across many malls.
It depends on the mall's specification, the letter construction, how many elements you need and the night installation requirements. A single set of front-lit bulkhead letters costs far less than a trimless sign with blade sign, glazing and a back-wall logo. Send the fit-out manual and your logo, and we will send an itemised quote, usually within 24 hours.
Yes. Every mall requires tenant signage to be approved before fabrication and installation. Shop drawings showing size, materials, lighting and fixings are reviewed against the design criteria by the tenant coordination team. Installing without approval risks having the sign removed and delays your opening, so we never fabricate before approval.
It varies by mall, by the tenant coordination team's workload and by how complete the submission is. A clean, well-prepared package often goes through in one round of comments, while every resubmission adds time to the programme. We prepare drawings in each mall's format and answer common comments in advance, which keeps approval to as few rounds as possible.
Malls control lighting so corridors look consistent and no single tenant dominates with glare. Many prefer halo-lit or front-lit letters at a set colour temperature, and restrict lightboxes, exposed LEDs and flashing effects. The rules protect the environment that brings shoppers to every tenant, including you.
Yes, and most malls require it. Work usually happens after closing, often between midnight and early morning, under a work permit with method statements and safety documents. We plan the night so the sign is fitted, connected, tested and the area cleaned before the mall opens.
A blade sign projects at right angles from the shopfront so people walking along the corridor can see it before they reach your unit. Many malls require or strongly recommend one, often at a fixed size and position. It matters most in long corridors where the bulkhead sign is only visible from directly in front.
Usually the tenant, as part of the reinstatement obligations in the lease. That means removing the sign, making good the bulkhead and sometimes repainting it. If Bayan Signage made and installed your sign, our sign removal service can take it down and make good the bulkhead for you, and signs built on our removable rails make that much quicker.
Yes. Many of our mall projects follow a brand's own sign standard, which we reconcile with the mall's criteria. Where they conflict, for example on depth, colour temperature or a required Arabic line, we raise it with both sides before fabrication so the sign satisfies the brand and the landlord.
Send your logo, the fascia size and a site photo. Our estimating team replies with options and an itemised price, usually within 24 hours.
